Geocomposite Findrain

Geocomposite Findrain

120 INR/Square Meter

Product Details:

  • Material polypropylene(pp)
  • Georgette Style Non Woven
  • Application Typical applications Site : Roads RE Wall , Levelling and mechanical protection of the geomembrane; drainage of the accidental leaks below primary ; leachate and rain water collection above primary geomembrane; mechanical protection of the geomembranes when in contact with waste-materials and/or soil; drainage of liquids and gases present in the soil above and/or below the capping geomembrane.
  • Length x Width 2.1mtrX50mtr Meter (m)
  • Color White
  • Thickness 5.5 Millimeter (mm)
  • Click to View more
X

Geocomposite Findrain Price And Quantity

  • 500 Square Meter
  • 120 INR/Square Meter

Geocomposite Findrain Product Specifications

  • Non Woven
  • 2.1mtrX50mtr Meter (m)
  • 5.5 Millimeter (mm)
  • polypropylene(pp)
  • Typical applications Site : Roads RE Wall , Levelling and mechanical protection of the geomembrane; drainage of the accidental leaks below primary ; leachate and rain water collection above primary geomembrane; mechanical protection of the geomembranes when in contact with waste-materials and/or soil; drainage of liquids and gases present in the soil above and/or below the capping geomembrane.
  • White

Geocomposite Findrain Trade Information

  • 50000 Square Meter Per Week
  • 2-3 Days
  • Yes
  • Free samples are available
  • All India
  • ISO 9001:2015, member of ITTA, MSME and NSIC

Product Description

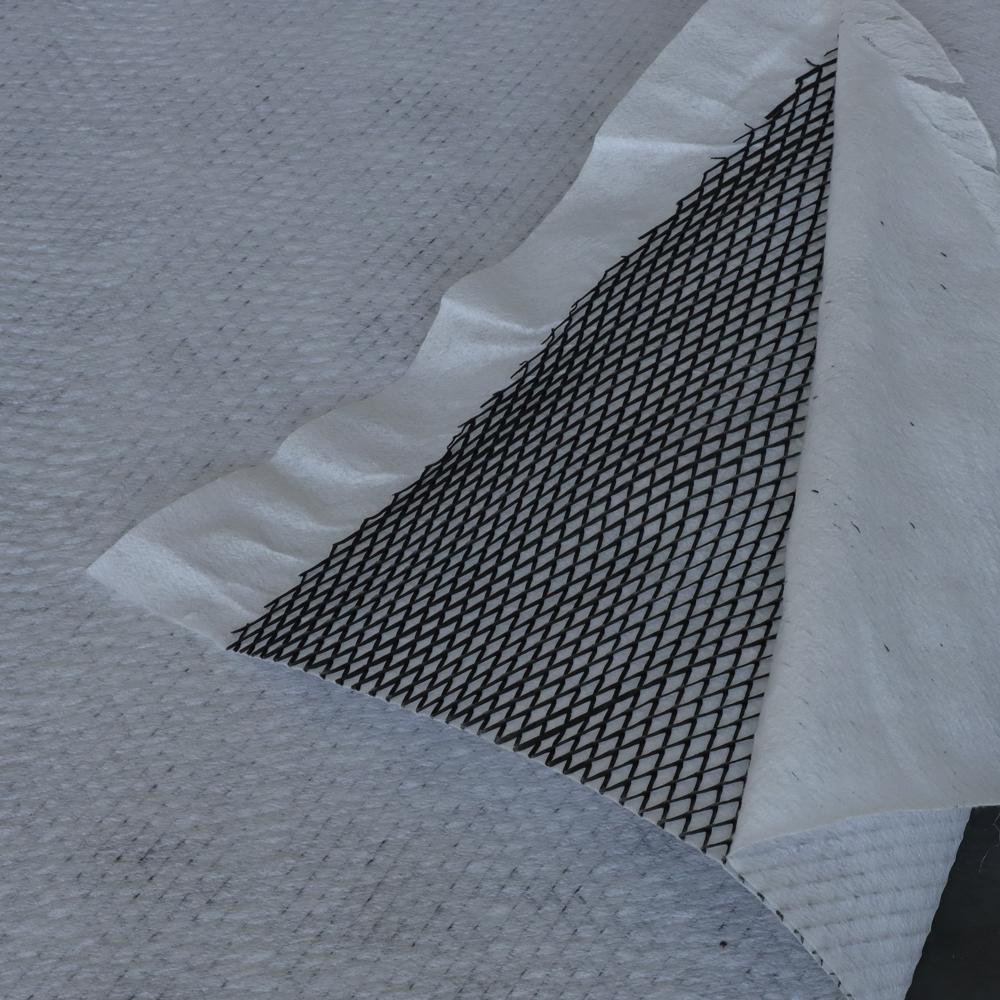

For the diverse requirements of our valued clients, we are engaged in manufacturing and supplying an exclusive collection of Geocomposites. Which are a combination of any of Geotextiles, Geogrids/Geonets, Geomembranes. The materials and manufacturing methods vary with the composite Geosynthetics used. These are extensively used for geosynthetic applications.

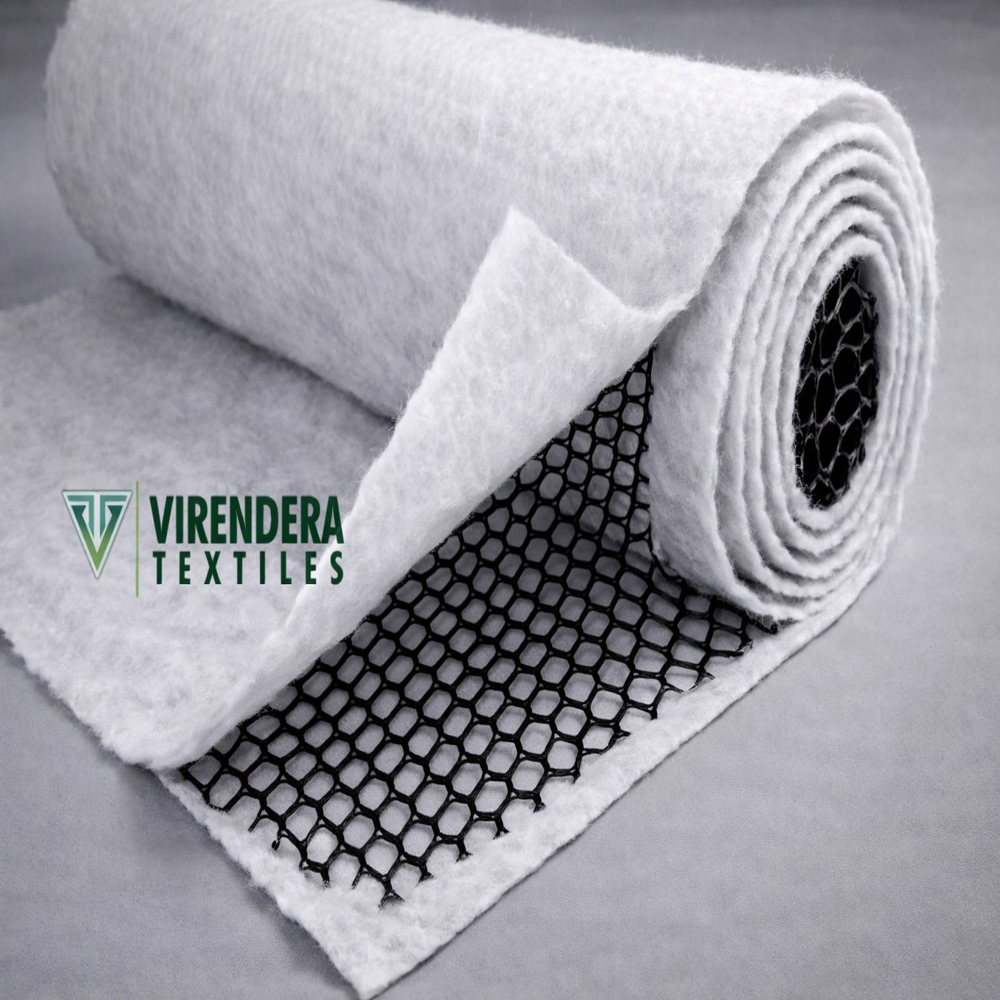

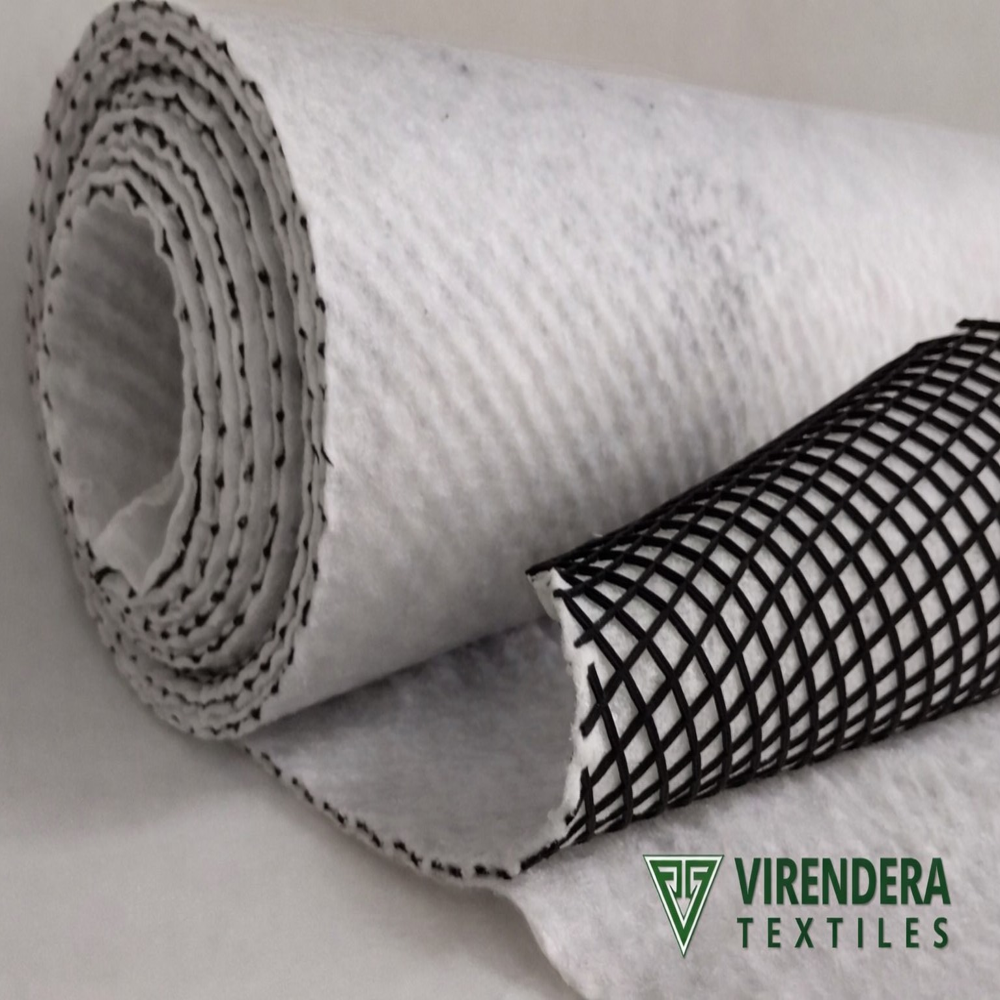

VT GC Fin drains shall be made of light weight, three dimensional high compressive strength polyethylene core black in color ; they are resistant to chemical and biological conditions normally occurring in soil. Moreover they are treated with special additives to resist UV degradation. ; and heat bonded or needle punched polypropylene / polyester geotextile provided on one side or both sides of the core as per the requirements. The inner strands, thicker and heavier, provide high compressive resistance and transmissivity. The intersecting strands form overlaid sets of continuous deep channels which provide high flow capacity. These Findrain are used in Roads RE Wall, waste disposal and civil engineering projects, where a high hydraulic flow capacity is required.

Geotextile used in a drainage composite shall meet the requirements as specified in Table 700-9.(of morth) The properties of the core material shall meet the requirements as indicated in Table 700-10 (of morth).

Typical applications Site : Roads RE Wall , Levelling and mechanical protection of the geomembrane; drainage of the accidental leaks below primary ; leachate and rain water collection above primary geomembrane; mechanical protection of the geomembranes when in contact with waste-materials and/or soil; drainage of liquids and gases present in the soil above and/or below the capping geomembrane.

Geotextile Specifications for VT GC Fin drains

In-situ soil passing

Permittivity, per sec ASTM D

Maximum Apparent Opening Size, mm as

0.075 mm sieve(%)

4491/ IS 14324 : 1995

per ASTM D4751/ IS 14294 : 1995

< 15

0.5

0.43

15 to 50

0.2

0.25

> 50

0.1

0.22

Specification for Fin drain :

Property

Test method

Units

Minimum average Roll value

Tensile strength

EN ISO 10319

kN/m

16

CBR Puncture Resistance

EN ISO 12236

N

3000

Mass per unit area

EN ISO 9864

g/m2

710

Thickness of Composite

EN ISO 9863

mm

4.5

In-plane permeability




(Hydraulic Gradient, i=1 at 100 kPa pressure)

EN ISO 12958

l/m

0.55

Hydraulic Gradient, i=1 at 200 kPa pressure

EN ISO 12958

l/m

0.45

Technical Specifications

Width

Customized

Thickness

5 mm

Application

Drainage

Brand

VT



FAQs of Geocomposite Findrain:


Q: What are the dimensions of the Geocomposite Findrain?

A: The dimensions of the Geocomposite Findrain are 2.1mtr X 50mtr.

Q: What are the typical applications for the Geocomposite Findrain?

A: The typical applications for the Geocomposite Findrain include roads, RE walls, leveling and mechanical protection of the geomembrane, drainage of accidental leaks below primary geomembrane, leachate and rainwater collection above primary geomembrane, and mechanical protection of the geomembranes when in contact with waste-materials and/or soil.

Q: What is the material used in the Geocomposite Findrain?

A: The Geocomposite Findrain is made of polypropylene (PP).

Q: What is the color of the Geocomposite Findrain?

A: The Geocomposite Findrain is white in color.

Q: What is the thickness of the Geocomposite Findrain?

A: The thickness of the Geocomposite Findrain is 5.5 millimeters (mm).
